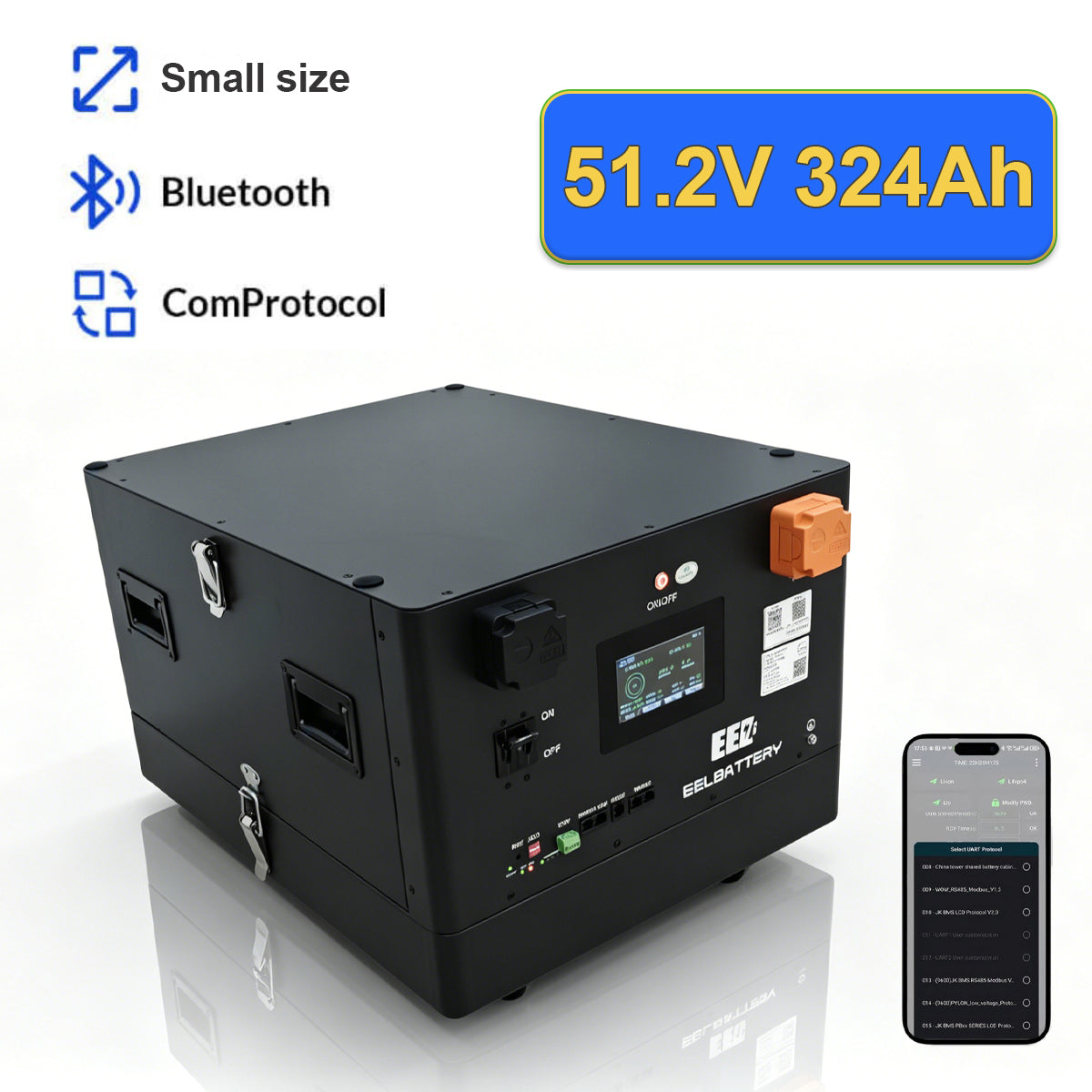

EEL 48V 324Ah 17kWh Self-heating Server Rack Battery | JK 200A BMS | Bluetooth Support | 5-Year Warranty | IEC62619 | CE | MSDS

EEL 48V 324Ah 17kWh Self-heating Server Rack Battery | JK 200A BMS | Bluetooth Support | 5-Year Warranty | IEC62619 | CE | MSDS

★ Save Extra 2% with ★ :  CNEEL Copy
Regular price $1,698.00 USD
Regular price Sale price $1,698.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Battery Model: EEL-JKV6-17kWh
  • Standard Capacity: 324Ah (17kWh)
  • Cycle Count: 6000
  • Application Scenarios: Home energy storage, off-grid power generation

EU stock expected arrival time: June 15th

🔋 Why Choose Our 48V 324Ah Server Rack Battery?

【5-Year Peace of Mind & IEC62619 Certified】 – Built with premium Grade A LiFePO₄ battery cells, backed by a 5-year warranty and comprehensive after-sales support. Reliable, long-lasting power you can trust.

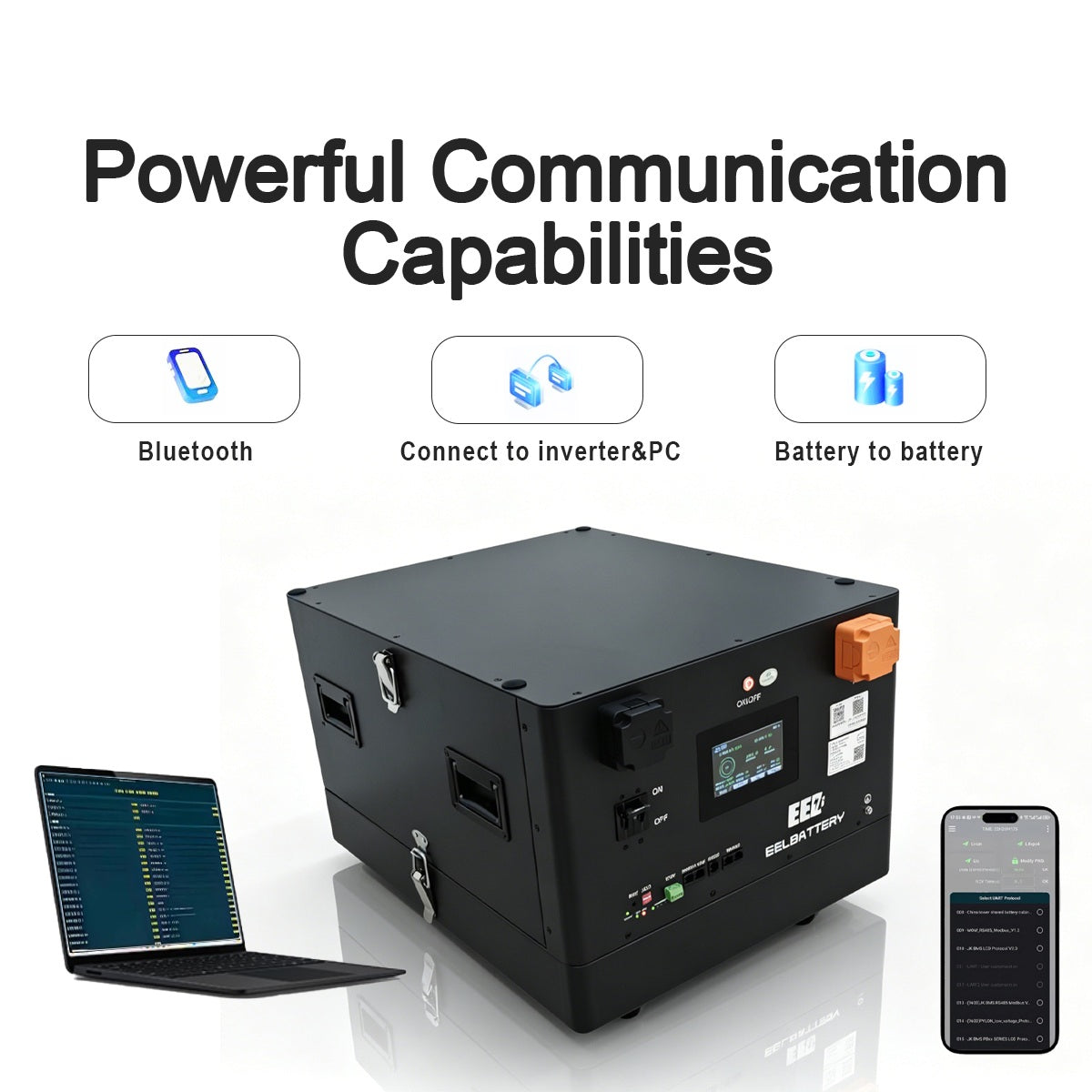

【Smart Monitoring, Full Control】 – Track device status in real time and stay in command via Bluetooth app or CAN/RS485 connection. Seamlessly compatible with mainstream all-in-one solar inverters.

【Safe & Durable】 – Rugged all-metal enclosure, a 200A Battery Management System (BMS) with low-temperature protection, and dual circuit protection (circuit breaker + T‑class fuse). Overcharge, over‑discharge, and short‑circuit protection keep you and your family safe.

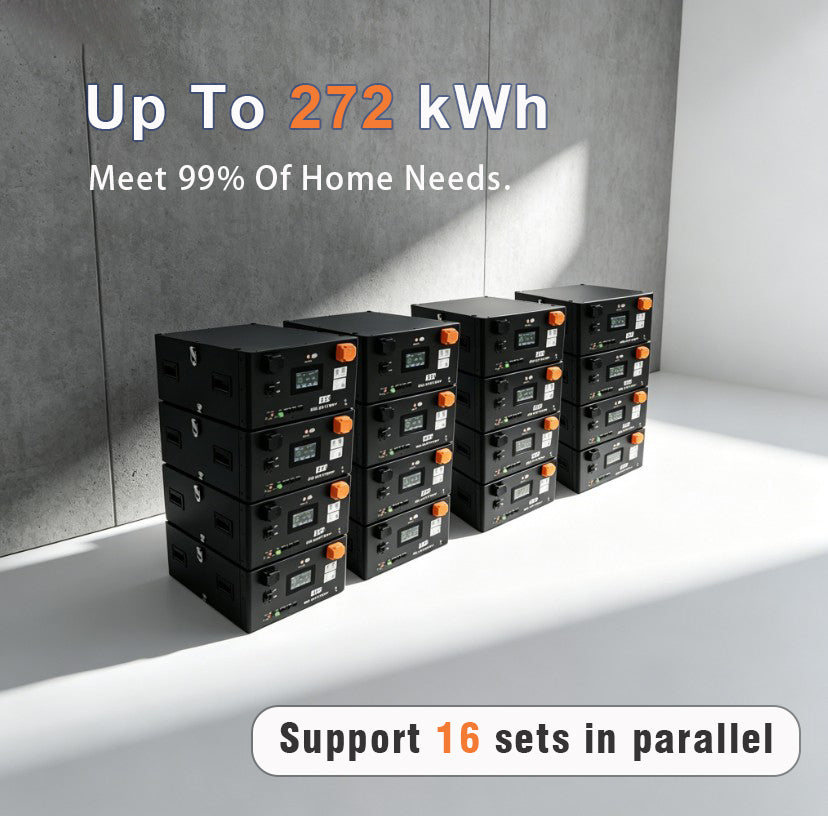

【Easy to Expand & Install】 – Weighs just 265 lbs (approx. 120 kg) and can be easily installed by two people. Supports up to 16 units in parallel, making it ideal for home backup power, workshops, farms, or RV systems.

【Smart Energy Independence】 – Use as home backup power during outages or pair with a solar system to significantly reduce your electricity bill. The ideal choice for families who prioritize safety and energy savings.

Ship from
Packs
Quantity

254 in stock

View full details
  • Description
  • Shipping Details
  • Payment Options

Best Home Energy Storage Solution
Use as home backup power during outages or pair with a solar system to significantly reduce your electricity bill. The ideal choice for families who prioritize safety and energy savings.

Technical Specifications – EEL V6 Pro 48V 324Ah Server Rack Battery



Parameter Value
Battery Capacity 324Ah
Battery Energy 16589Wh
Rated Voltage 40~58V
Max Charge/Discharge Current 200A
Charge Temperature Range 0~55°C
Discharge Temperature Range -20~55°C
Voltage Range 40~58V
Max Charge Voltage 58.4V
Screw Size M8

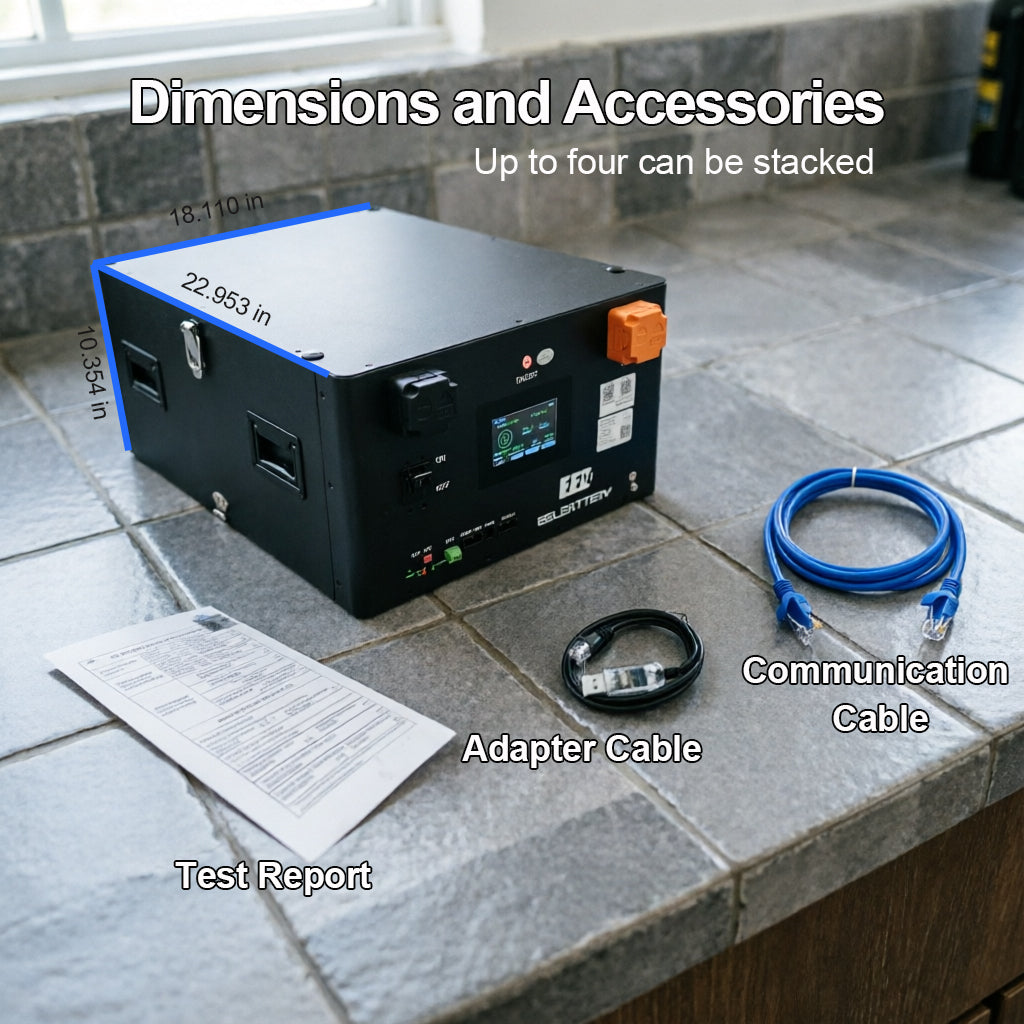

Battery Dimensions 22.953 × 18.110× 10.354 in
Battery Weight 265 lbs
Self-heating maximum power 204.8W
Certifications CE, MSDS, UN38.3, IEC 62619



1. European stock delivery details:

The goods will be transported by express services such as DPD, UPS, DHL, GLS, etc.

Germany, Austria, Poland and other places can receive the goods within about 7 working days.Other European countries need to charge additional fees based on the delivery distance.

Other EU countries can receive the goods within about 7 to 10 working days. (Before signing for the goods, please be sure to open the package in person to determine whether the goods are damaged during transportation, otherwise the express company will not compensate)

2. Chinese stock delivery details:

Large goods delivery details:

After you place an order, the goods will be produced and packaged according to your needs and transported by sea or rail.

The delivery time to European countries is about 45 to 55 working days, and some remote areas will take longer.

The delivery date in Australia and the United States is about 32 working days, and in Canada it is about 55 working days, and the delivery date in remote areas will be extended.

The delivery date in countries surrounding China is about 15 working days.

We will provide you with a courier tracking number for the terminal transportation of the goods. You can use this number to inquire about the transportation status of the cargo ship. When the goods are finally delivered to express service providers such as DPD, you can also check the progress of the goods transportation yourself. (Before signing for the package, please be sure to open it in person to confirm whether the goods are damaged during transportation, otherwise the courier company will not compensate)

Small item delivery details:

When small items are purchased together with large items, they are shipped together with the large items by default. If purchased separately, they will be shipped by air express, and the delivery date is about 10 working days, except for special circumstances.

Payment Options
We offer multiple payment methods to meet your needs:
PayPal / Credit Card / Visa:

Subject to a 5% international transaction fee. This option ensures faster processing and buyer protection.

Other Online Payment Platforms
Bank Transfer (Wire/TT): Fixed bank fee of approximately $48–100 per transaction (varies by bank). Recommended for large orders to minimize overall transaction costs.

Tip: For high-value purchases, we advise using bank transfers to reduce additional fees. Contact us anytime with payment-related questions.



Packaging Specifications
- High-density custom-molded foam for superior battery protection
- 5-ply export-grade hazardous materials-certified cartons
- Insulating tape pre-applied on both terminals
- Pre-shipment cell-level data labeling on all units
- Wooden crating available upon request for enhanced transport security



US/EU Warehouse (U.S. Stock) – Fast Shipping

DDP (Delivered Duty Paid) Service: No hidden taxes; door-to-door delivery
3–7 day delivery via freight truck, DPD, FedEx, or UPS after dispatch

The EEL 17kWh 324Ah battery comes with a 5-year warranty, giving you peace of mind.

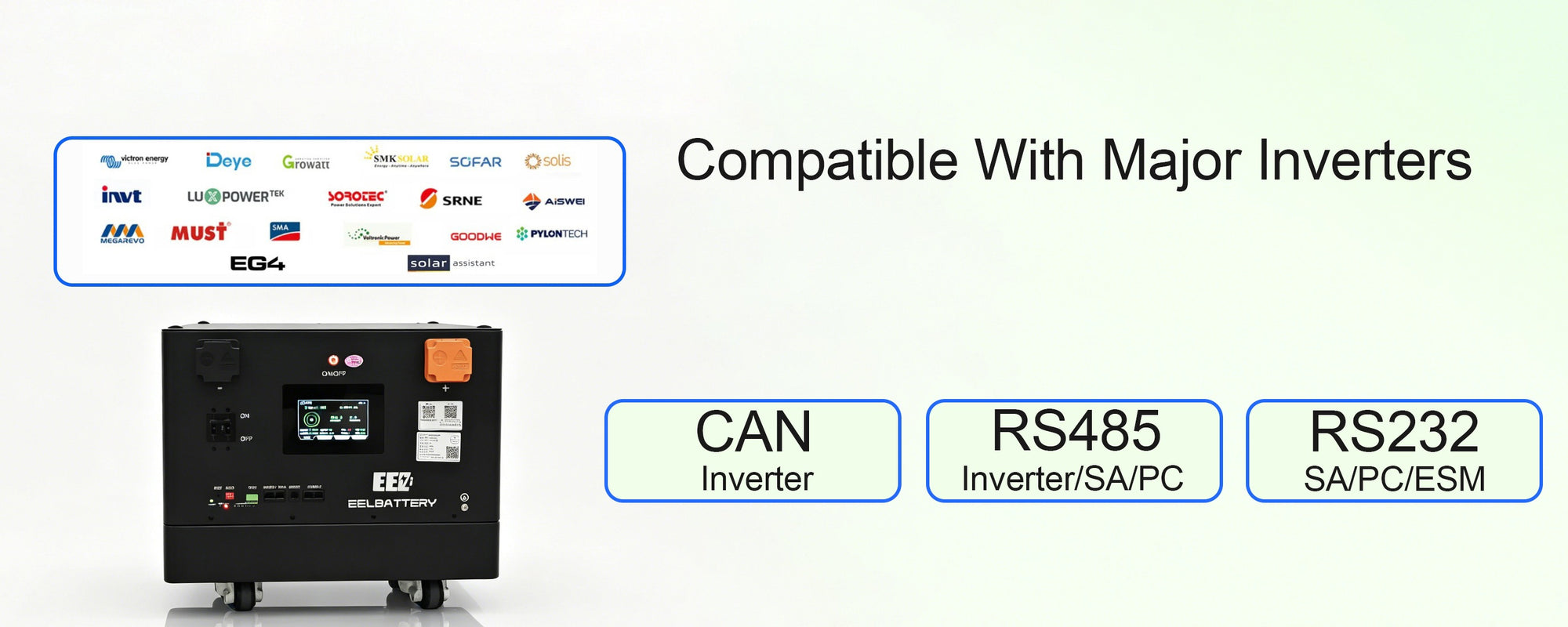

The EEL 17kWh 324Ah battery can communicate seamlessly with mainstream 48V inverters on the market.

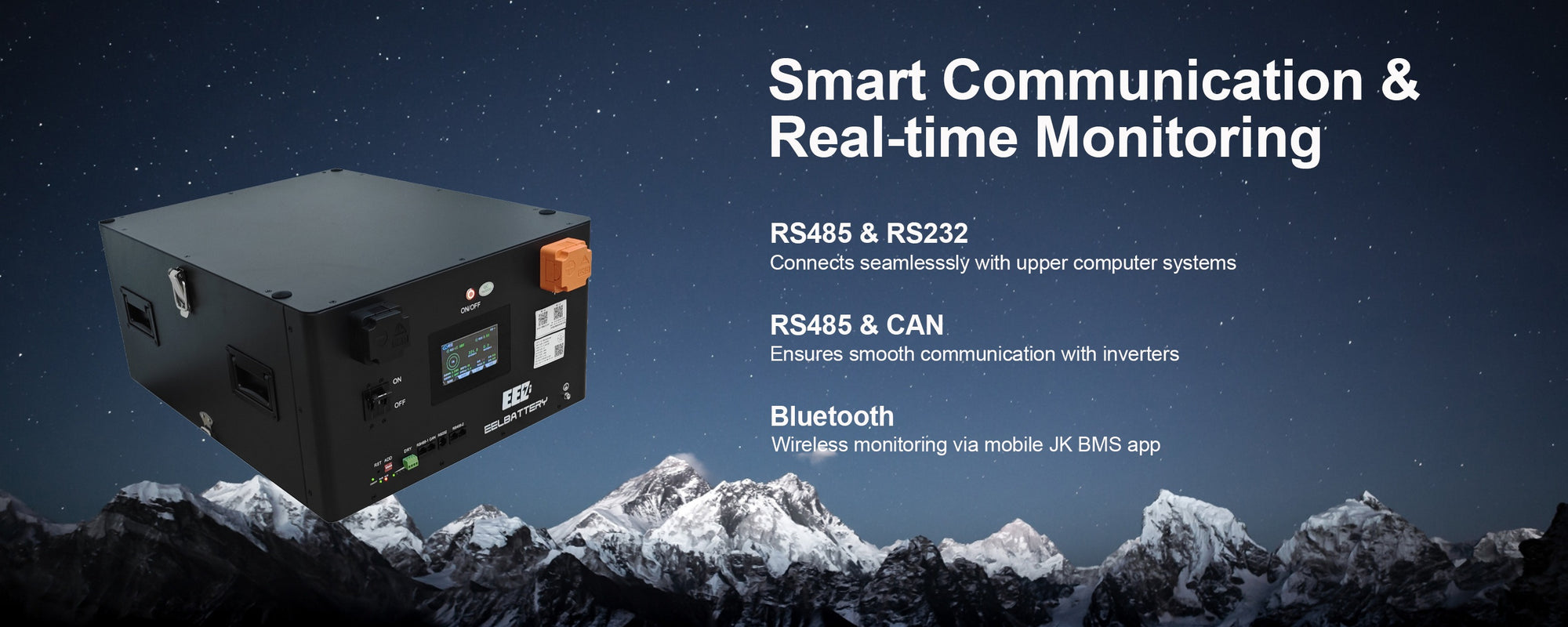

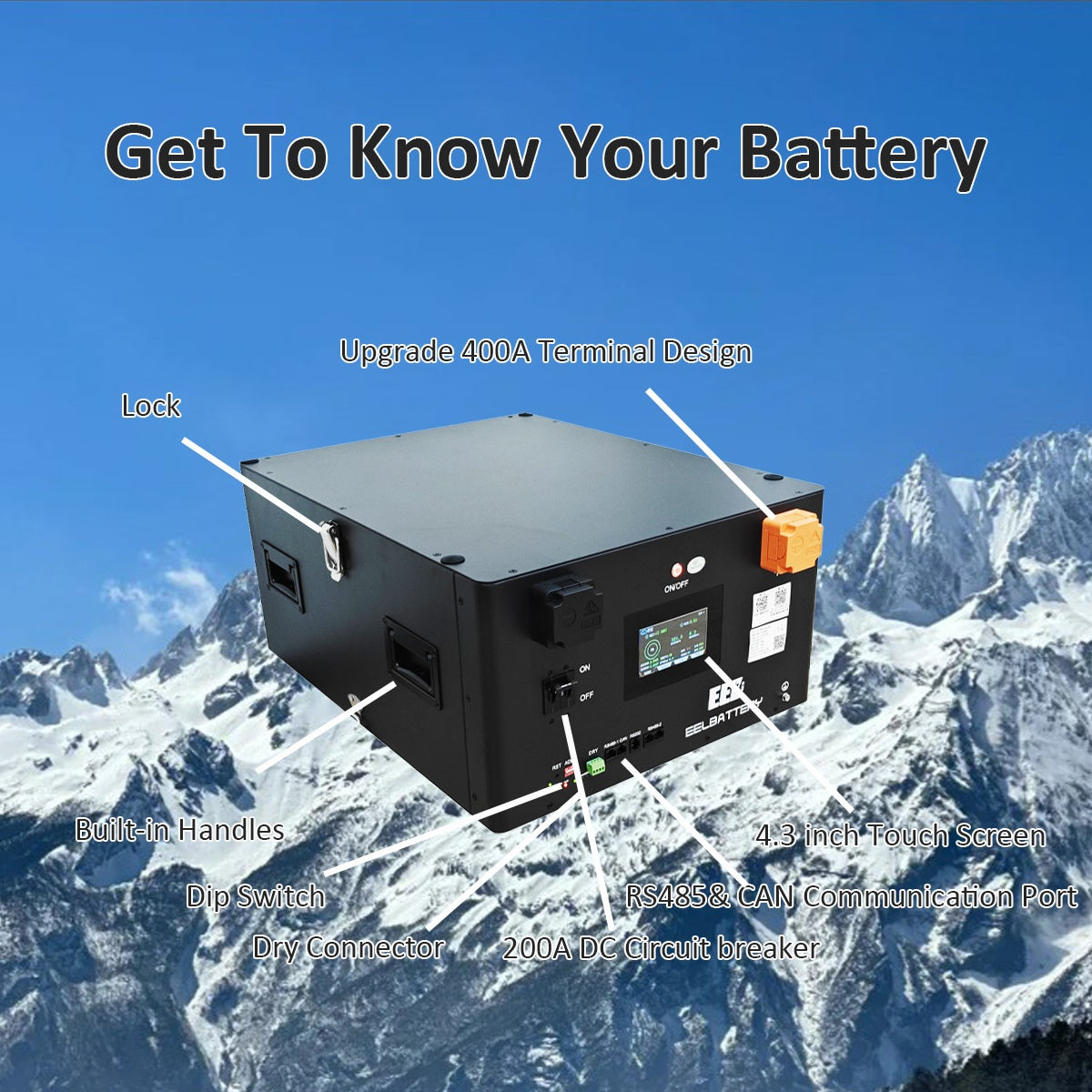

The EEL 17kWh 324Ah battery has three communication ports: RS485, CAN, and RS232, enabling communication with inverters and computers.

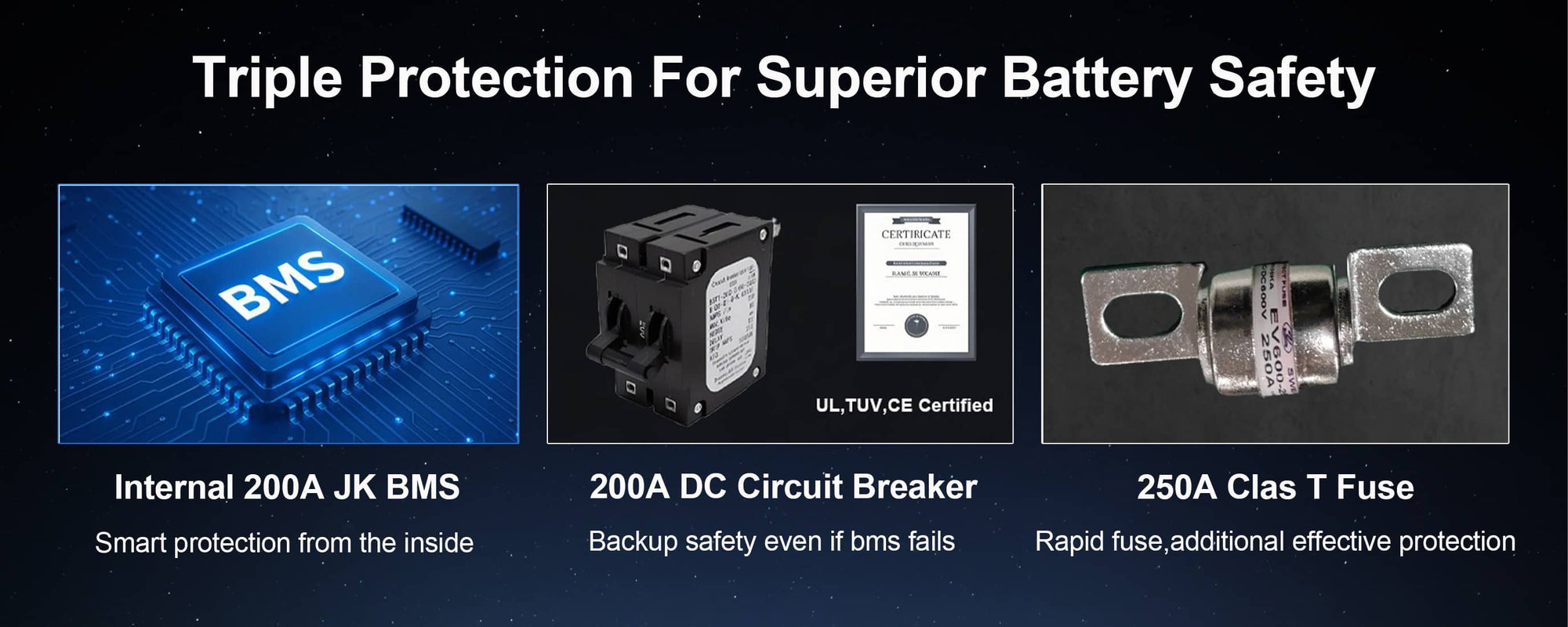

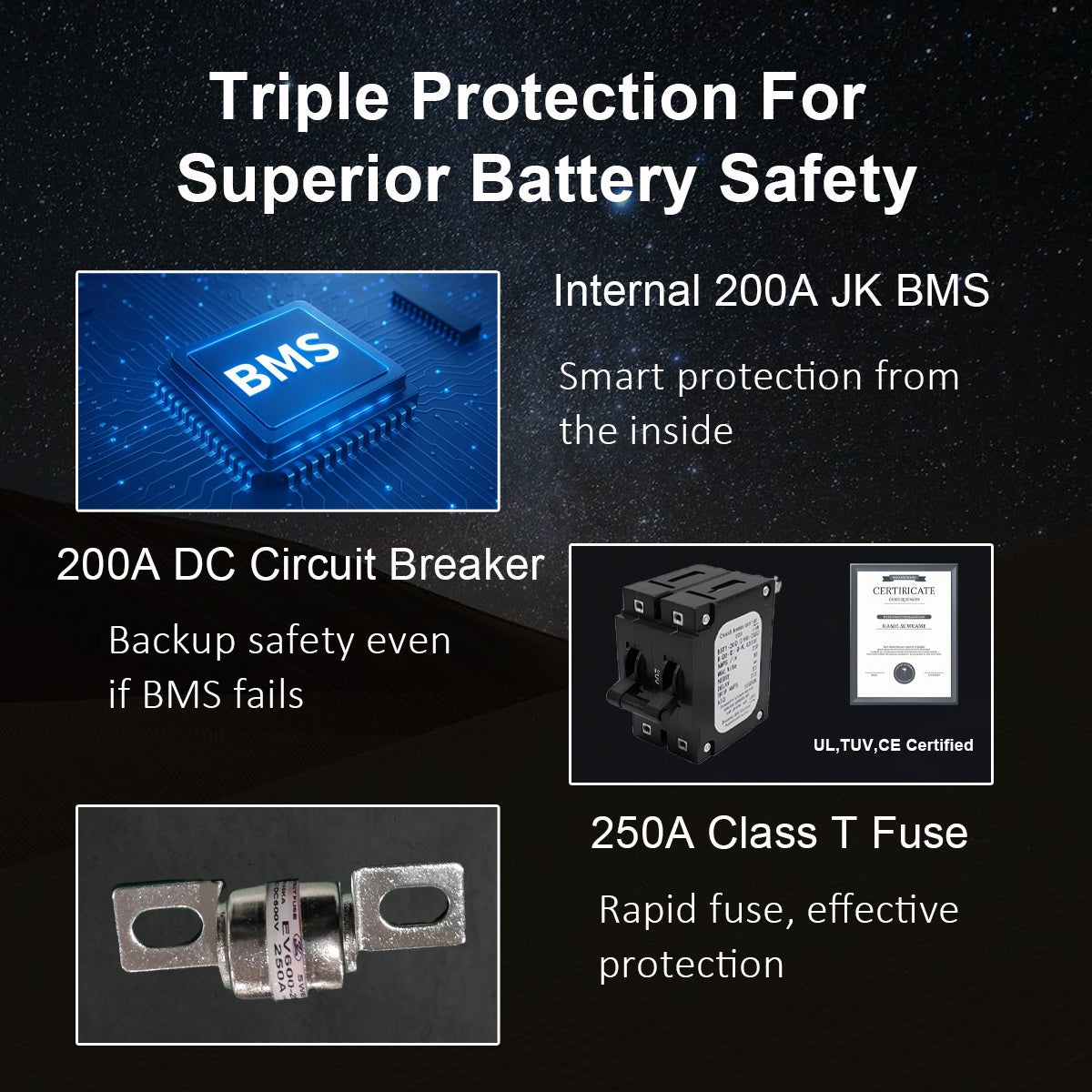

The EEL 17kWh 324Ah battery features four layers of safety protection: BMS, circuit breaker, fuse, and fire extinguisher.

Frequently Asked Questions

What certifications do you hold?

Our 51.2V 17kWh battery has obtained IEC 62619, CE, and MSDS certifications. You can view the relevant certificates in the download section of the product page.

What is the warranty period of the battery?

We offer 5-year warranty for 51.2v server rack lithium battery,covering non-human-induced battery failure issues.When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.

What communication methods are supported?

Our batteries communicate with mobile applications via built-in Bluetooth; RS485-1 on the front panel communicates with mainstream inverters and solar assistants; RS485-2 communicates with the host software; a CAN interface communicates with the inverter; and an RS232 interface communicates with the host software.

What kind of battery cells are used?

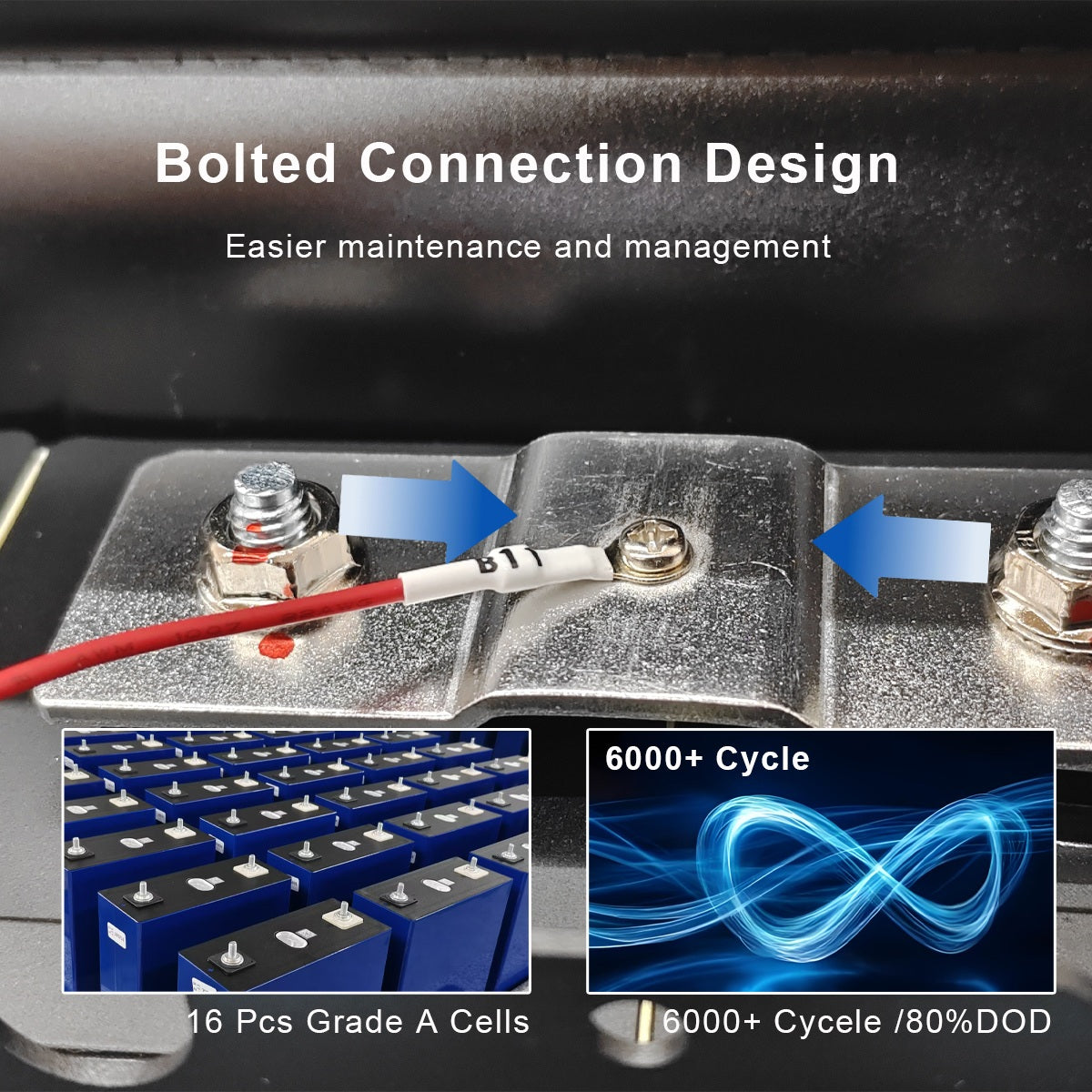

We use 100% A-grade prismatic 324Ah cells from CALB, ensuring 6000 cycles at 80% DOD.

What safety designs does the battery have?

Each battery includes a built-in 200A BMS, a pre-charge circuit, a built-in 250A T-class fuse, and a 200A short-circuit protection switch located on the front panel.

Which inverters can this battery communicate with?

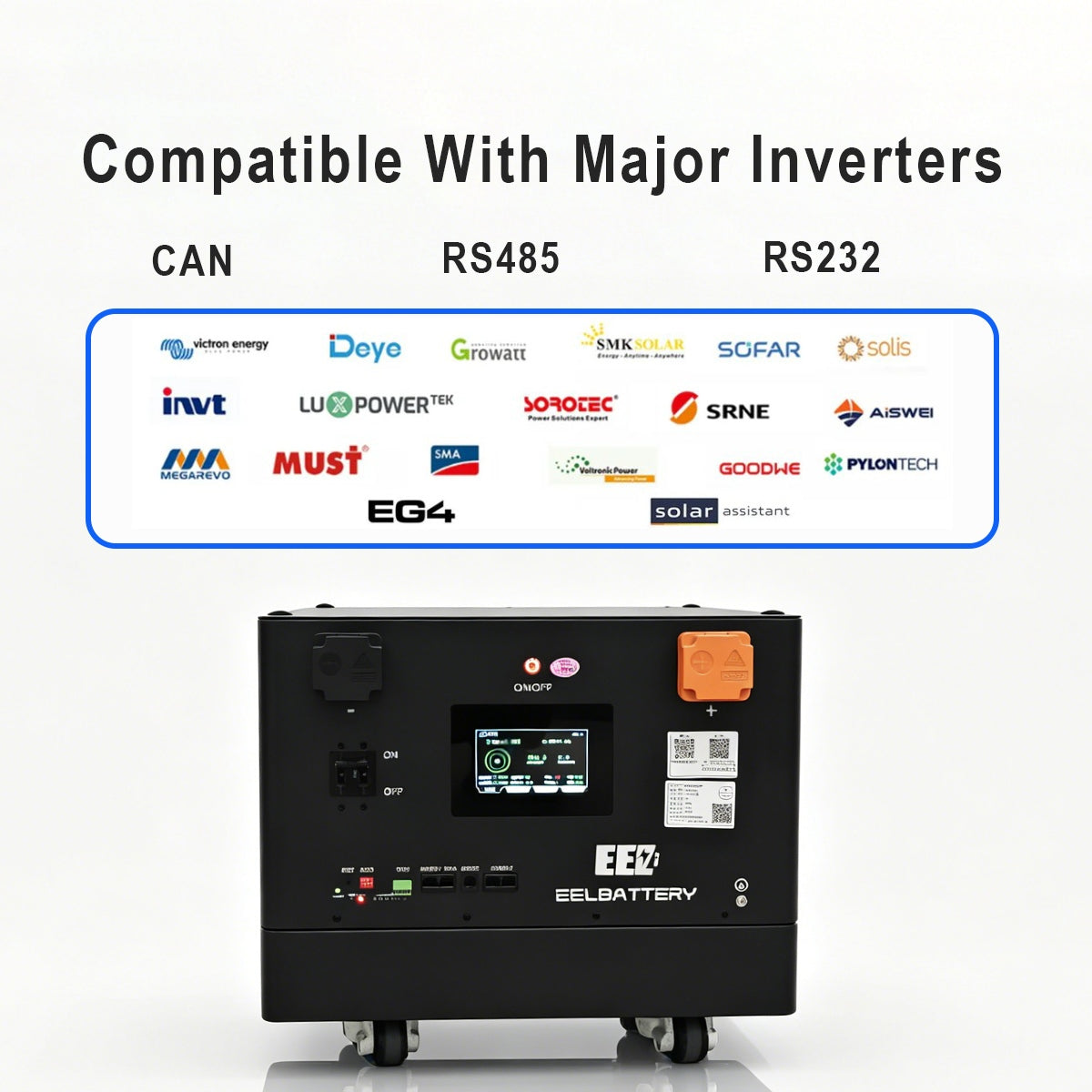

Compatible with all major inverters: Victron, Deye, Pylon,Growatt, Lux Power, Sol-Ark, GoodWe, EG4, SRNE, and more.

Can this 17kWh battery communicate in parallel with V4/V5/V6?

Yes. The principle of the DIP switch is the same. However, please note that this battery is different in size from the previous V4/V5/V6 batteries, and they cannot be stacked together.
