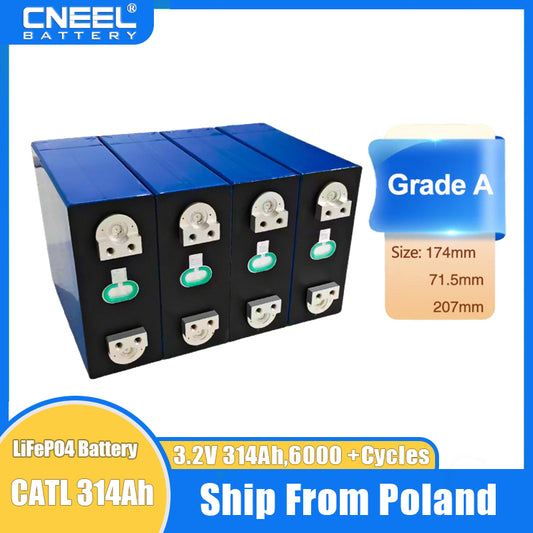

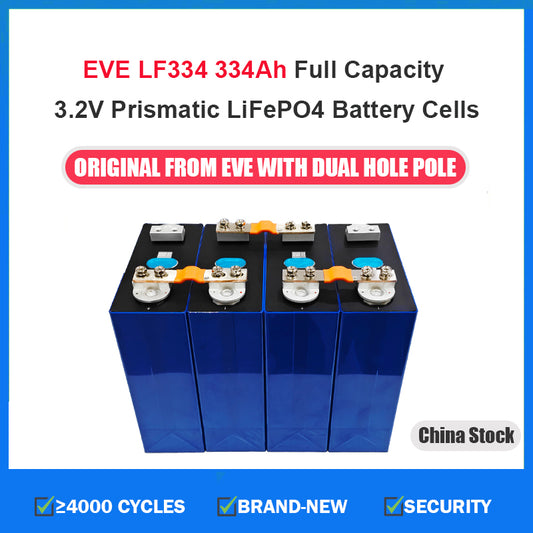

Prismatic LiFePO4 Cells

When handling prismatic LiFePO₄ cells, it is essential to strictly follow mechanical installation, electrical configuration, and thermal management precautions to prevent premature cell failure or hazardous conditions.

1. Mechanical Installation & Physical Protection

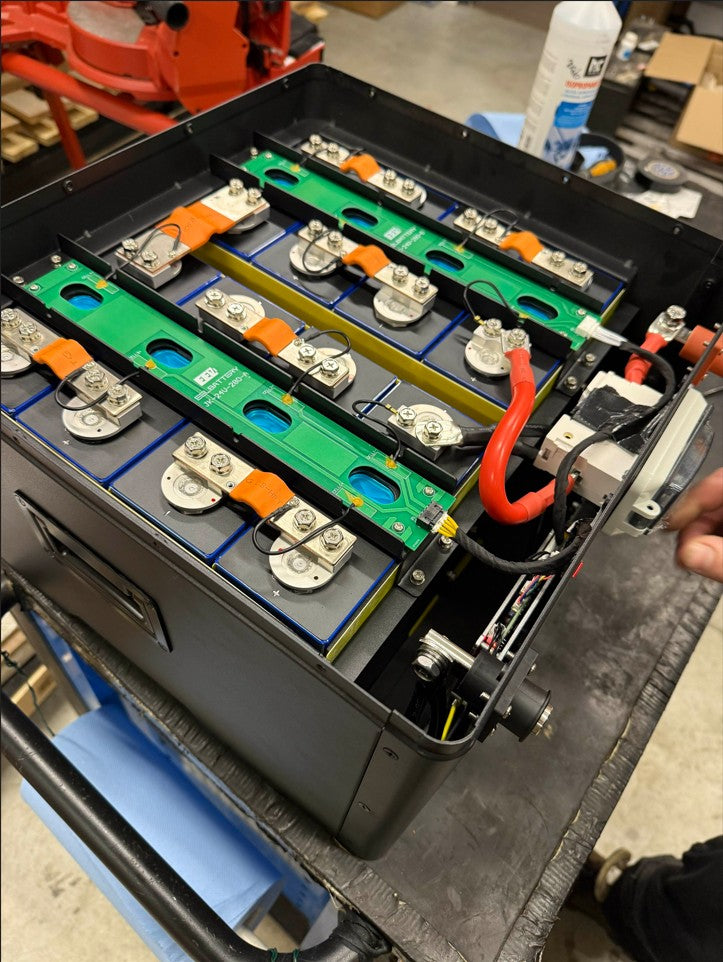

• Proper Cell Compression: Prismatic cells undergo slight expansion and contraction during charge/discharge cycles. Using dedicated fixtures or compression plates helps prevent cell swelling, minimizes stress on internal connectors, and protects terminals from damage. This can also extend cell lifespan.
• Cell Housing Insulation: The aluminum casing of prismatic cells is typically separated from the internal chemistry only by a thin plastic heat‑shrink tube. Insert rigid insulating sheets (e.g., fiberglass boards) between adjacent cells to prevent film abrasion and subsequent large‑area short circuits.

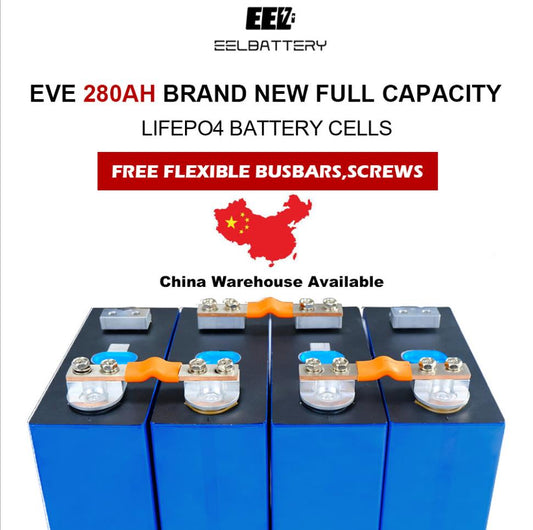

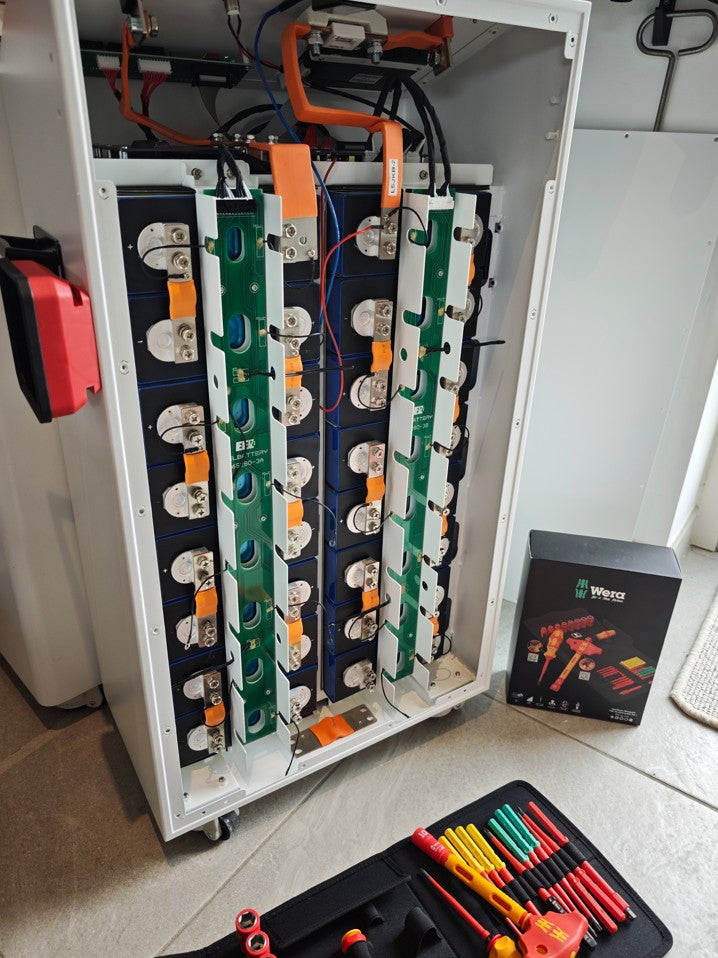

• Protect Terminals from Stress: Use flexible copper busbars rather than fully rigid ones. Rigid busbars transfer physical vibration directly to the cell terminals, which may cause internal connection breakage. Flexible busbars not only accommodate cell expansion but also offer better conductivity.
• Check Cell Orientation: While many LiFePO₄ cells can be placed on their side, always follow the manufacturer‑approved orientation to ensure the safety vent is unobstructed and functions properly.

2. Electrical Setup & Balancing

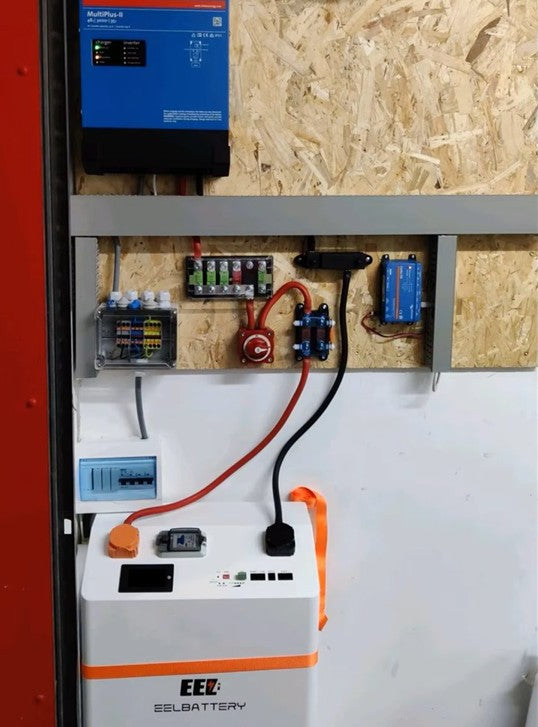

• Always Integrate a BMS: Never use individual cells without a functioning Battery Management System (BMS). The BMS provides essential over‑voltage, under‑voltage, and short‑circuit protection.
• Perform Initial Top Balancing: First connect cells in parallel and balance them all to 3.65V before connecting in series. If they are not pre‑balanced, some cells will reach their maximum or minimum cutoff voltage prematurely, reducing the overall usable capacity of the battery pack.
• Set Strict Voltage Thresholds:Maximum charge voltage: 3.65V per cellMinimum discharge voltage: 2.5V per cell (however, limiting discharge to 2.8V–3.0V significantly extends cell life). Avoid fully discharging cells whenever possible.

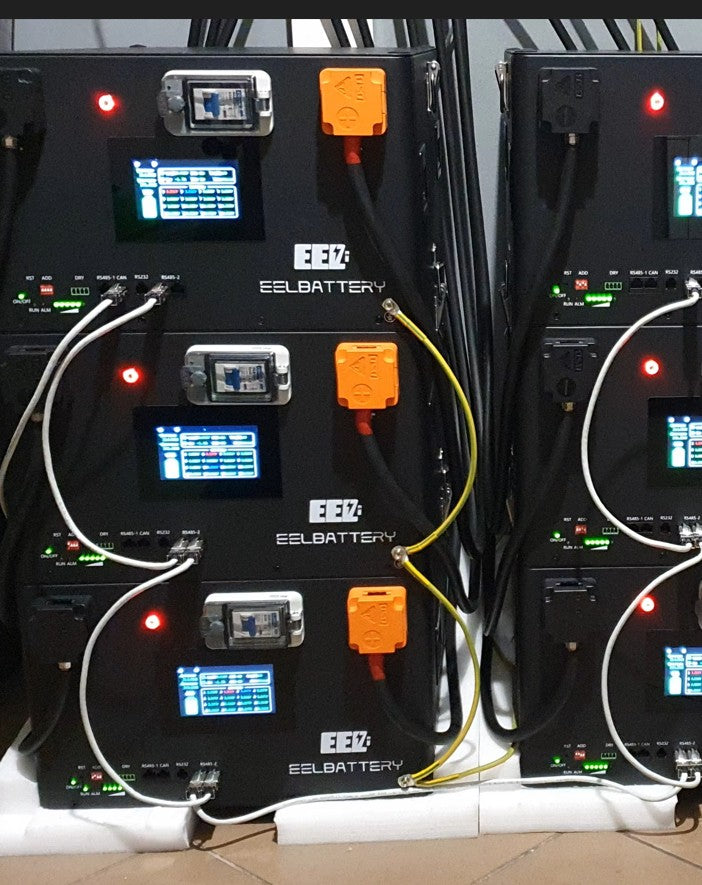

• Keep Connections Clean & Tight: Loose terminals cause localized high resistance, leading to rapid overheating, melted components, and potential fire hazards.

3. Temperature & Environmental Limits

• Never Charge Below Freezing: Do not attempt to charge LiFePO₄ cells if the ambient temperature is below 0°C (32°F). Charging below freezing causes lithium plating on the anode, resulting in irreversible damage and internal short‑circuit risks. Ensure your BMS has low‑temperature charge cutoff functionality.
• Prevent High‑Temperature Degradation: Keep both operating and storage environments cool (ideally between 15°C and 25°C / 59°F and 77°F). High ambient temperatures accelerate internal self‑discharge and faster overall capacity fade.

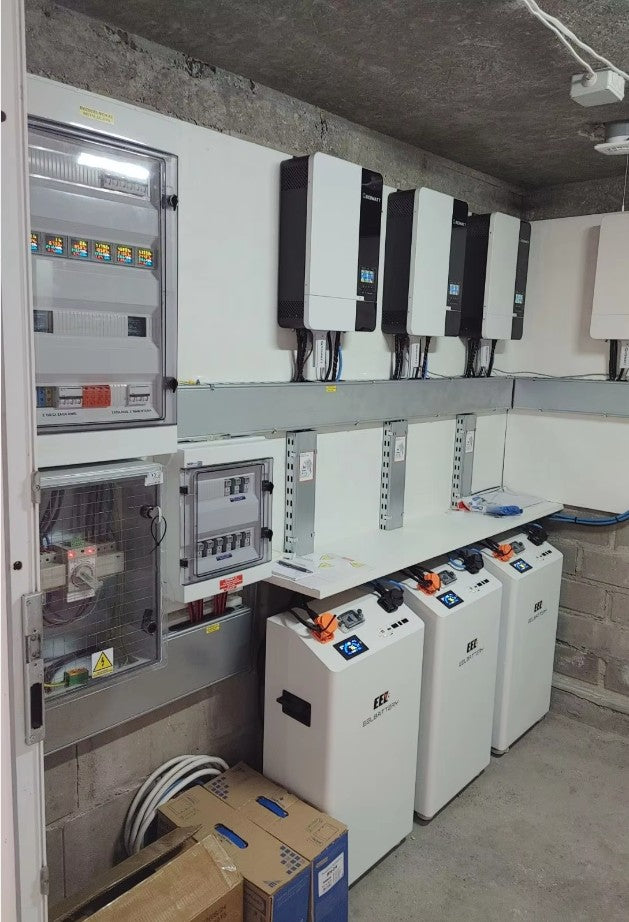

• Maintain Adequate Physical Clearance: Leave at least 2 to 3 inches of open space around the battery enclosure for passive heat dissipation.

4. Long‑Term Storage

• Partial State of Charge Storage: If the battery pack will be idle for several months, do not keep it at 100% state of charge (SoC) or fully discharged. Maintain the SoC at approximately 50% to minimize chemical degradation. Re‑charge the cells every 3 months to keep the internal chemistry active.
